Original Article

Efficient Nitrate Removal from Water Using Zinc-Aluminium Layered Double Hydroxide Nanostructures: Synthesis and Adsorption Optimization

Please cite this article as follows: Safi M, Bouchekara M, Sassi M, Halfadji A. Efficient nitrate removal from water using zinc-aluminium layered double hydroxide nanostructures: synthesis and adsorption optimization. Avicenna J Environ Health Eng. 2025;12(2):79-88. doi:10.34172/ajehe.5614

1. Introduction

Environmental pollution due to urbanization, industrialization, and intensive agriculture has degraded ecosystems and threatens human health, with contaminants like pesticides, PCBs, PAHs, nitrates, metals, and metalloids increasingly affecting water quality (1,2). Water and wastewater pollution involves diverse chemicals from human activities, contaminating sources, rivers, and supplies (3,4). Nitrate is an important contaminant of groundwater and surface water resources due to its solubility and varied sources. While vital for growth, excess nitrate impairs oxygen transport and remains a key target for removal from soil and water (5,6). Exposure to nitrate can cause serious health problems, including methemoglobinemia (blue baby syndrome) and birth defects (7). These risks have prompted regulations targeting sources such as agriculture, fertilizers, and organic waste (8). Nitrate pollution arises from point and nonpoint sources, mainly agricultural runoff from livestock waste and fertilizers. Factors such as topography, herd density, and buffer zones affect accumulation. Intensive farming increases runoff, causing eutrophication and degrading drinking water quality (9). Nitrate exposure above 10 mg/L poses serious risks to infants, including methemoglobinemia and developmental issues. Chronic exposure is linked to thyroid disorders, cancer, and birth defects, highlighting the importance of regular water monitoring (10). Nitrate in drinking water raises health concerns, as dietary nitrates are converted into nitrites by oral bacteria, which impair blood function and form carcinogenic nitrosamines, recognized since 1956 (11). Methods like ion exchange and reverse osmosis are used for the removal of nitrate, and ion-exchange resins are most effective. Efficiency depends on competing ions, with new techniques improving results (12).

Adsorption is a cost-effective method for the removal of nitrate, utilizing high surface area, porous adsorbents with ion-exchange sites. Modifications enhance active sites, selectivity, and capacity, allowing rapid pollutant removal with minimal post-treatment (13,14). The adsorption process, in particular, has proven to be one of the most effective techniques for removing several anions, such as fluoride (15), phosphate (16), ammonia (16), nitrate (16), aniline (17), and perchlorate (18), using different adsorbents. The selection of a suitable material plays a vital role in the optimal adsorption of particular pollutants (19).

The high cost of activated carbon has shifted interest to affordable LDHs, valued for their tunable properties and broad applications. Foundational studies were conducted by Feitknecht (1942) and Reichle (1968) (20,21). LDHs, or anionic clays, have the general formula (M^II_{(1_y)} M^III_y (OH)₂)^y+_(y/m) A^m- xH₂O. Their positively charged layers, formed by substituting divalent with trivalent metal ions, provide high ion-exchange capacity for inorganic and organic anions. Typically, M²⁺ represents divalent cations like Mg²⁺, Zn²⁺, or Cu² (22), and M³⁺ refers to a trivalent cation, which includes ions, such as Al³⁺, Cr³⁺, Fe³⁺ (23), and so on. Moreover, the partial substitution of M³⁺ for M²⁺ results in positively charged hydroxide sheets that require intercalation with anions (Aⁿ⁻), such as CO₃²⁻, NO₃⁻, and Cl⁻. LDH nanostructures exhibit characteristics advantageous for pollutant adsorption, including large surface areas, good thermal stability, and elevated sorption and regeneration efficiencies (24). LDHs are cost-effective to synthesize and efficiently treat dye and industrial wastewater. The removal of nitrate depends on optimizing contact time, dose, concentration, pH, and temperature (25).

Recent studies show that biomaterials such as chitosan-modified Mg-Al LDH can remove up to 98.7% of nitrate in 90 minutes at 298 K (26). Calcined Ti nanopores used as electrodes removed 87.5% of nitrate via electrolysis (27). Co-biochar functionalized with Mg/Al LDH nanocomposites showed 86%–100% efficiency and superior durability compared to guava seed/beetroot peel biochar (28). Other effective materials for enhancing nitrate and nitrite adsorption include nano γ-alumina, magnetite-alumina nanocomposites, nZVI/LDH composites, and protonated crosslinked chitosan adsorbents (29,30).

The present study included the following steps. First,zinc-aluminum layered double hydroxides (Zn-Al-LDHs) were effectively produced using a co-precipitation technique. Then, Zn-Al-LDH nanostructure was characterized using various techniques, including X-ray diffraction (XRD) and Fourier-transform infrared spectroscopy (FTIR). Afterwards, to enhance the nitrate adsorption efficiency of the Zn-Al-LDH nanostructure, it is essential to examine the influence of several factors, including pH, contact duration, adsorbent dosage, and nitrate concentration. The effects of the calcination process on Zn-Al-LDH and the influence of temperature (10 to 50 °C) on nitrate adsorption were then investigated. Finally, the equilibrium adsorption data were evaluated through the application of Langmuir and Freundlich isotherm models.

2. Materials and Methods

2.1. Materials

The synthesis of LDHs included the use of zinc chloride (ZnCl₂), aluminum chloride (AlCl₃), sodium hydroxide (NaOH), and sodium carbonate (Na₂CO₃). Zinc chloride and aluminum chloride were obtained from Sigma-Aldrich, whereas sodium hydroxide and sodium carbonate were obtained from Merck and Sigma-Aldrich, respectively.

2.2. Synthesis of Zn-Al-CO3 Layered Double Hydroxides (Zn-Al-LDH)

The Zn-Al-LDH, specifically [Zn-Al-CO₃], was synthesized through a straightforward co-precipitation technique maintained at a stable pH of 10. In summary, a metal salt solution was prepared by combining precise quantities of salt, which include 20.86 g of ZnCl₂, and 12.19 g of AlCl₃ dissolved in 50 mL of distilled water (31,32). The precipitation was then induced by dropwise addition of an aqueous solution containing 6 g of NaOH and 10.7 g of Na₂CO₃ in 50 mL of distilled water. The pH was maintained at 10 under vigorous stirring until a gel formed. After 18 hours of curing at 70 °C, the synthetic product underwent multiple filtration and washing processes using distilled water and ethanol. Subsequently, the product was dried at 60 °C for 24 hours. After finely grinding with an agate mortar, the obtained sample was calcined at 400 °C (31,32). The synthesized Zn-Al-LDH samples were characterized by XRD and FTIR spectroscopy before use.

2.3. Characterizations of the Adsorbent

The crystallized structures of Zn-Al-LDH before and after nitrate adsorption, as well as those of the zinc-based materials, were characterized by XRD spectroscopy (PANalytical X-Ray Diffractometer). A copper anticathode emitting X-rays with a wavelength of 1.5418 Å was used. FTIR is a technique that relies on the absorption of infrared radiation by the sample under investigation. This method facilitates the identification of distinctive vibrational modes associated with chemical bonds between atoms, thereby enabling the analysis of various chemical functionalities. The Zn-Al-LDH samples at different stages (before and after nitrate adsorption) were analyzed by a Perkin-Elmer Spectrum 65 Fourier Transform Spectrophotometer. The spectral range was 4000 cm ^-1 to 400 cm ^-1 after pelletization (KBr) with a resolution of 4 cm^-1. The thermogram was obtained using a SENSYevo SETARAM instrument. For these analyses, the temperature was systematically elevated from 10 °C to 1000 °C at a regulated heating rate of 10 °C/min.

2.4. Adsorption Experiments

A stock solution of nitrates (NO₃^-) with 1000 mg/L was prepared using potassium nitrate (KNO₃). Then, different proportions were diluted in distilled water to make standard solutions for the determination of nitrates, as well as for the preparation of lower concentration solutions used during the adsorption tests. Additionally, the spectrophotometer was used to measure optical density directly. Moreover, the analyses were carried out on a spectrophotometer UV-vis Spectrum instruments (SP-UV 2005). The highest recorded wavelength for nitrate is λmax = 220 nm. Stock solutions with a concentration of 1 g/L of NO₃^- were prepared by dissolving the required quantity of nitrate in distilled water. Generally, the concentrations achieved through dilution were used in this study. The adsorption experiments were conducted using a series of 250 mL beakers, each containing 20 mg of the respective Zn-Al-LDH and 250 mL of the nitrate solution at the specified concentration. The experiments were conducted at a constant agitation speed of 500 rpm. The pH of the solution was systematically varied between 2 and 12, while the contact time was adjusted from 5 to 360 minutes, and the initial nitrate concentration ranged from 20 to 1000 mg/L. The pH was adjusted to the desired level through the addition of either 1 N HCl or 1 N NaOH. Following each adsorption trial, the solid phase was isolated from the liquid phase via centrifugation at 3000 rpm for 15 minutes. The residual concentrations were assessed using UV-visible spectroscopy. The quantities adsorbed at equilibrium (qe) and at any given time (q_t) were computed using the specified following equation (33):

q_e = Adsorbate concentration at equilibrium, mg/g

C_o = Initial adsorbate concentration, mg/L

C_e = Final adsorbate concentration at equilibrium, mg/L

V = Volume of liquid, L

m = Mass of Zn-Al-LDH adsorbent, g

3. Results and Discussion

3.1. Characterizations of the Sorbent

Fig. 1a illustrates the XRD pattern of synthesized Zn-Al-LDH, which is typical of hydrotalcite-like compounds, with diffraction peaks at 2θ: 31.2°, 34.1°, 39.4°, and 53.6° attributed to the (009), (012), (015), and (018) planes, respectively, which are characteristics of the LDH structure. Additionally, the XRD pattern further reveals prominent symmetric reflection planes corresponding to (00l) and (11l), which suggest the distribution of metal ions within the LDH. Additionally, a less intense and asymmetric (01l) plane was observed, which can be classified within a hexagonal lattice structure characterized by rhombohedral space group symmetry, denoted as

Close

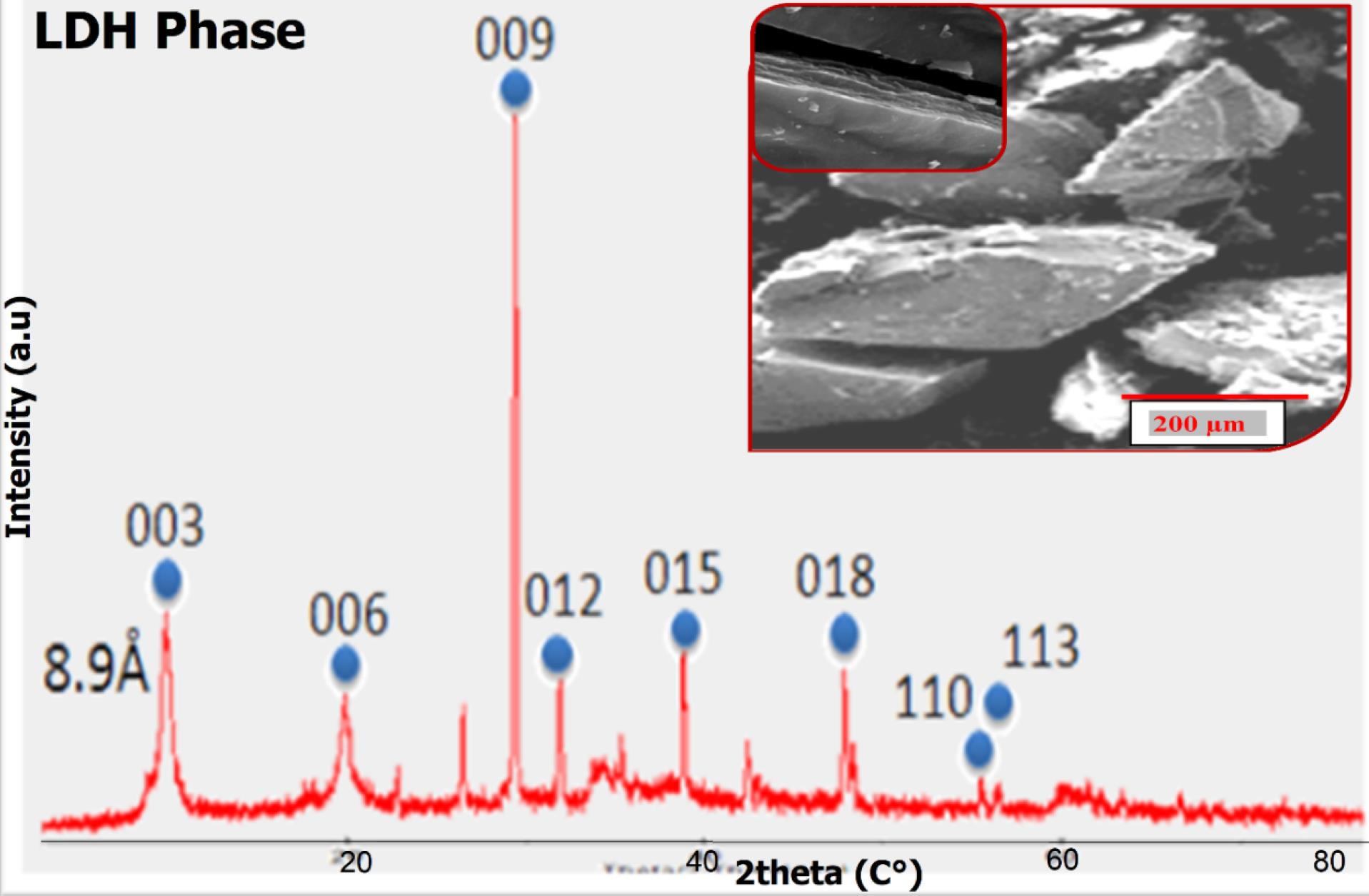

Fig. 1.

(a) X-ray Diffraction Patterns and (b) (inset) SEM Analysis of the Synthesized Zinc-Aluminum Layered Double Hydroxide (Zn-Al-LDH)

Fig. 1.

(a) X-ray Diffraction Patterns and (b) (inset) SEM Analysis of the Synthesized Zinc-Aluminum Layered Double Hydroxide (Zn-Al-LDH)

The previous SEM analysis of the Zn-Al-LDH nanostructure (Fig. 1b) indicated that the particles were extensively interconnected and displayed a distinct layered architecture, with the plate-like particles uniformly dispersed. The surface appeared to be flat with a layered texture, which makes the pockets rough and porous. This indicates that the material has excellent properties for use as an effective adsorbent of nitrate ions (37).

The FTIR spectrum obtained for the Zn-Al-layered double hydroxide (ZnAl-CO₃), as illustrated in Fig. 2, displays bands that are indicative of hydrotalcite-like materials (34). We can illustrate the broad and strong band centered at 3400 cm⁻¹, which is associated with the stretching vibrations of the OH bonds present in hydroxyl groups and water molecules (H₂O). Additionally, the weaker band at 1630 cm⁻¹ is attributed to the bending vibrations of H₂O within the interlayer spaces. This can also be attributed to C = C from the conjugated (aromatic) alkene group (37). The spectral bands observed at 460, 550, and 790 cm⁻¹ are associated with the condensed Al─O groups, the translation of Zn/Al─OH, and the deformation of Al─OH, respectively. In the case of the Zn─Al─CO₃ sample, the band observed near 1365 cm⁻¹ corresponds to the antisymmetric stretching mode of the carbonate ion, while the bands detected around 870 and 680 cm⁻¹ are linked to the weak non-planar bending mode and the angular bending mode of carbonate, respectively. According to Fig. 2a, the spectrum of the LDH phases has three characteristic domains, 4000-2500 cm^-1, and visible bands, located around 3400-3600 cm^-1. The vibrations associated with the hydroxyl groups (υOH) of the sheet, as well as those of water molecules that are physisorbed and intercalated, are the focus of this discussion. For low frequencies, ν < 1000 cm^-1, the observed vibration bands were assigned to the network. Additionally, the valence vibrations (ν_M-O) between the metal and the oxygen atoms (568 and 617 cm^-1) were distinguished; therefore, for the LDH phase [Zn─Al─CO₃] that we synthesized, the wide band located between 3100 and 3700 cm^-1 was attributed to valence vibration of OH-groups (OH.....OH) of physiosorbed water and/or valence vibration of OH─ (M─OH) groups linked to carbonate anions in the presence of divalent cations and trivalent (Zn ⁺² and Al ⁺³). The weak band centered at 1623 cm⁻¹ corresponded to the deformation vibration mode of water molecules strongly adsorbed between the layers. The carbonate anions were characterized by three frequency bands (i.e., 1415 cm^-1, 880 cm^-1, and 680 cm^-1) in our sample; these bands were shifted towards 1500cm ^-1, which can be attributed to the reorganization of the CO₃^2- anions within the interlayer region when water molecules are present (38,39).

Close

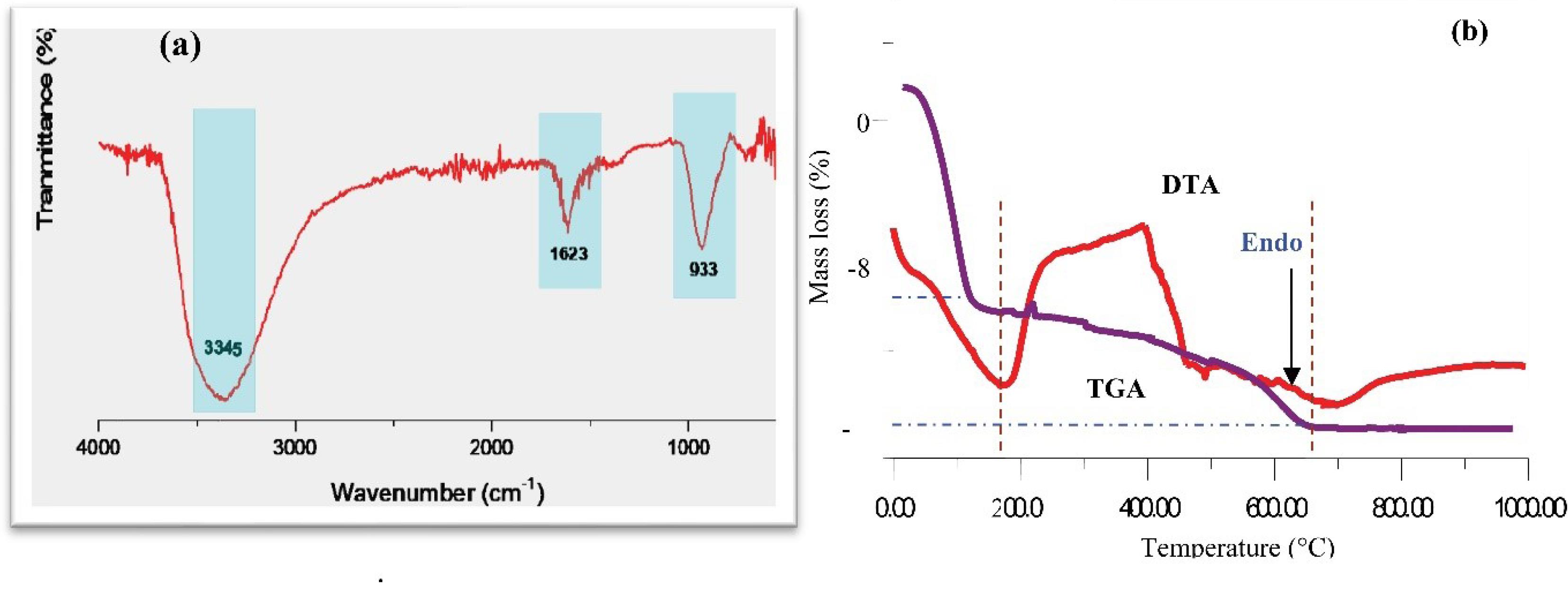

Fig. 2.

a) IR Spectrum of Zn-Al-LDH, b) DTG/DTA Analysis of Zn-Al-LDH

Fig. 2.

a) IR Spectrum of Zn-Al-LDH, b) DTG/DTA Analysis of Zn-Al-LDH

3.2. DTG/DTA Analysis of Zn-Al-LDH

The thermal decomposition of Zn-Al-LDH was investigated using thermogravimetric analysis (TGA) and differential thermal analysis (DTA) to better understand its decomposition behavior. The thermogravimetric and differential thermal analysis (DTG/DTA) results, as illustrated in Fig. 2b, demonstrate that the decomposition of Zn-Al-LDH proceeds through two clearly defined endothermic stages. The preliminary phase, which occurs at approximately 250°C, is attributed to the evaporation of water adsorbed on the surface as well as the removal of intercalated water molecules from the material. The next phase, occurring at 450°C, is characterized by the dehydroxylation of the structural layers, which leads to the disintegration of the lamellar structure and the formation of a mixed metal oxide (40).

A minor thermal peak was observed at higher temperatures near 650 °C, which was attributed to the elimination of residual carbonate ions strongly bound to the brucite layers (40). The dehydroxylation process, along with the decomposition of interlayer carbonate ions (CO₃²⁻), contributed to a mass loss of 32.5% up to 420 °C. Additionally, the structural deformation of the lamellae and the appearance of metal oxides were evident at 650 °C. The DTA curve shows three distinct endothermic peaks, each associated with the decomposition of interlayer anions.

3.3. Adsorption Evaluations of Zn-Al-LDH

3.3.1. The Effect of Contact Time on Nitrate Adsorption by Uncalcined Zn-Al-LDH and Calcinated Zn-Al-LDH-C

Fig. 3a illustrates the experimental findings, indicating that the surface adsorption of nitrate was enhanced on both Zn-Al-LDH and calcined Zn-Al-LDH-C. The adsorption process is characterized by two separate stages: an initial rapid phase followed by a more gradual phase. The amount of nitrate adsorbed increased with contact time. The curve indicates a rapid increase in the rate of nitrate removal within the first 30 minutes, reaching equilibrium after approximately 80 minutes. At equilibrium, the Zn-Al-LDH exhibited a maximum adsorption capacity of 13 mg/g.

Close

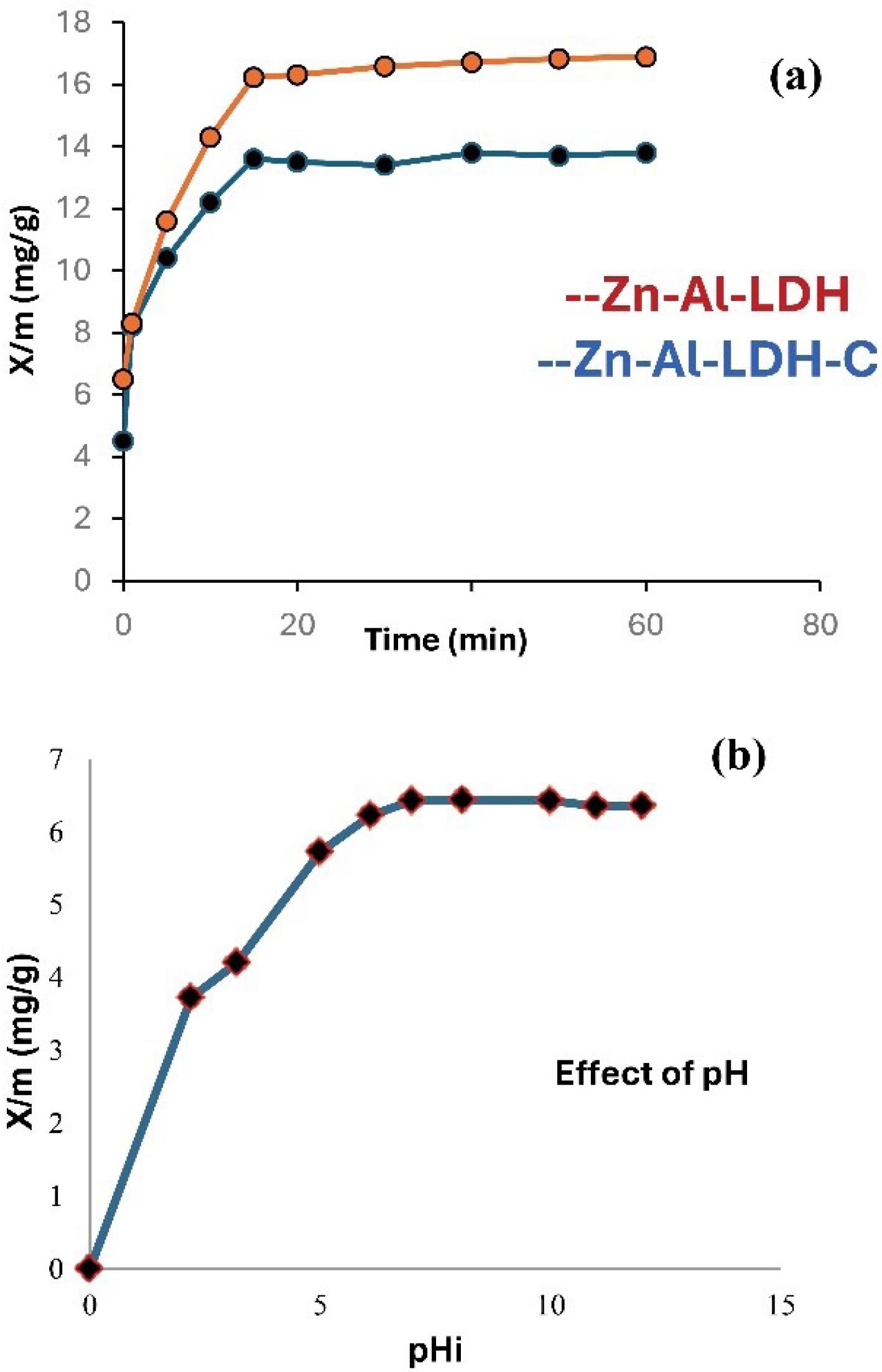

Fig. 3.

(a) Effects of Contact Time and (b) pH on the Surface Adsorption of Nitrate on Zn-Al-LDH and Zn-Al-LDH-C

Fig. 3.

(a) Effects of Contact Time and (b) pH on the Surface Adsorption of Nitrate on Zn-Al-LDH and Zn-Al-LDH-C

In contrast, Zn-Al-LDH-C exhibited an enhanced adsorption capacity, reaching a peak of 16 mg/g within 80–100 minutes in our study. This contrasts with a similar study that used calcined Mg-Al-LDH, which achieved a nitrate removal efficiency of 84% from real water. However, in the second stage, after the elimination of cations with a dose of 20 g/L, the efficiency increased to 99% (41). The enhanced performance of Zn-Al-LDH-C suggests its higher affinity for nitrate, likely due to its interlamellar spacing and the availability of primary adsorption sites, which were effectively occupied during the process.

3.3.2. The Effect of pH on the Adsorption of Nitrate with Zn-Al-LDH

Generally, pH is widely recognized as a significant parameter influencing the adsorption process at the interface between water and the adsorbent. To investigate this effect, adsorption experiments were conducted under consistent experimental conditions while systematically varying the solution pH from 2 to 12. The results of these experiments are presented in Fig. 3b. The representation of the effect of pH allows for the optimization of pH for the maximum adsorbed quantity of nitrate on the Zn-Al-LDH. It can be observed that the adsorbed quantity increased as pH was increased and that it reached the maximum value at pH 6.9. Therefore, the best pH for adsorption was 7. The findings indicate that the adsorption of nitrate anion (NO₃⁻) on Zn/Al-LDH surfaces decreased with increasing pH beyond this optimum, aligning with previous studies on Zn-Al-LDH synthesized using the co-precipitation method at a Zn/Al molar ratio of 3:1 (42). Furthermore, Li et al reported that pH is the most influential factor in the efficient adsorption of organic contaminants from wastewater using Zn-Al-LDH (43).

3.3.3. The Effect of the Dosage of Adsorbent on the Adsorption of Nitrate with Zn-Al-LDH

The obtained results are shown in Fig. 4. The data for both samples indicate that the adsorption capacity increased with increasing initial concentration. Consequently, the adsorption quantity increased as the concentration of the examined solution was increased.

Close

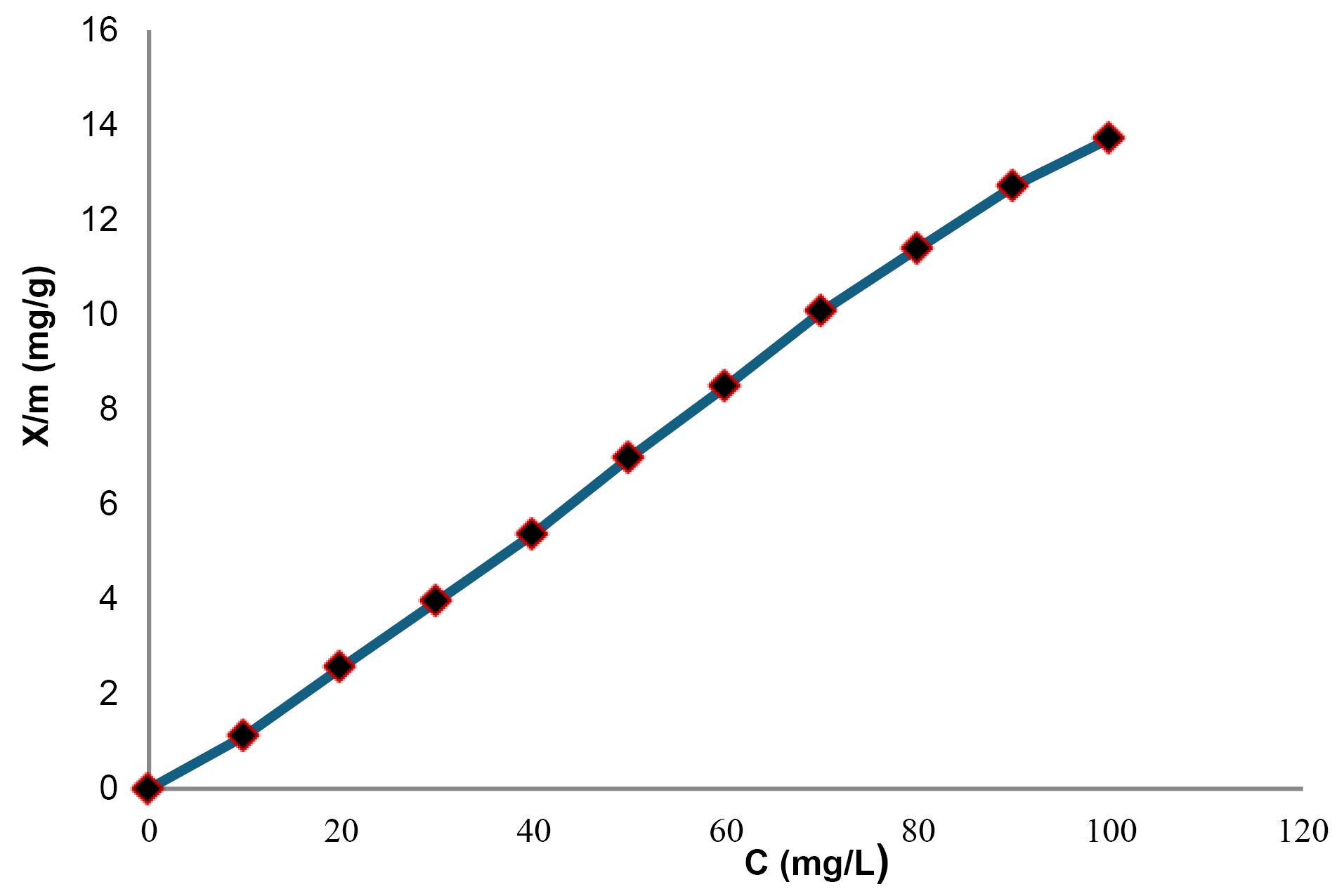

Fig. 4.

The Impact of Adsorbent Concentration (C) on the Surface Adsorption of Nitrate onto Zn-Al-LDH

Fig. 4.

The Impact of Adsorbent Concentration (C) on the Surface Adsorption of Nitrate onto Zn-Al-LDH

3.3.4.1. Influence of Temperature on Nitrate Adsorption

Understanding the effect of temperature on the adsorption of ions from a solution is essential for enhancing the efficiency of the adsorption process. The nitrate adsorption isotherms at 10 °C, 25 °C, and 50 °C are illustrated in Fig. 5a. These findings confirm the exothermic characteristics associated with the adsorption of nitrates onto the synthesized Zn-Al-LDH, as evidenced by increased adsorption at lower temperatures.

Close

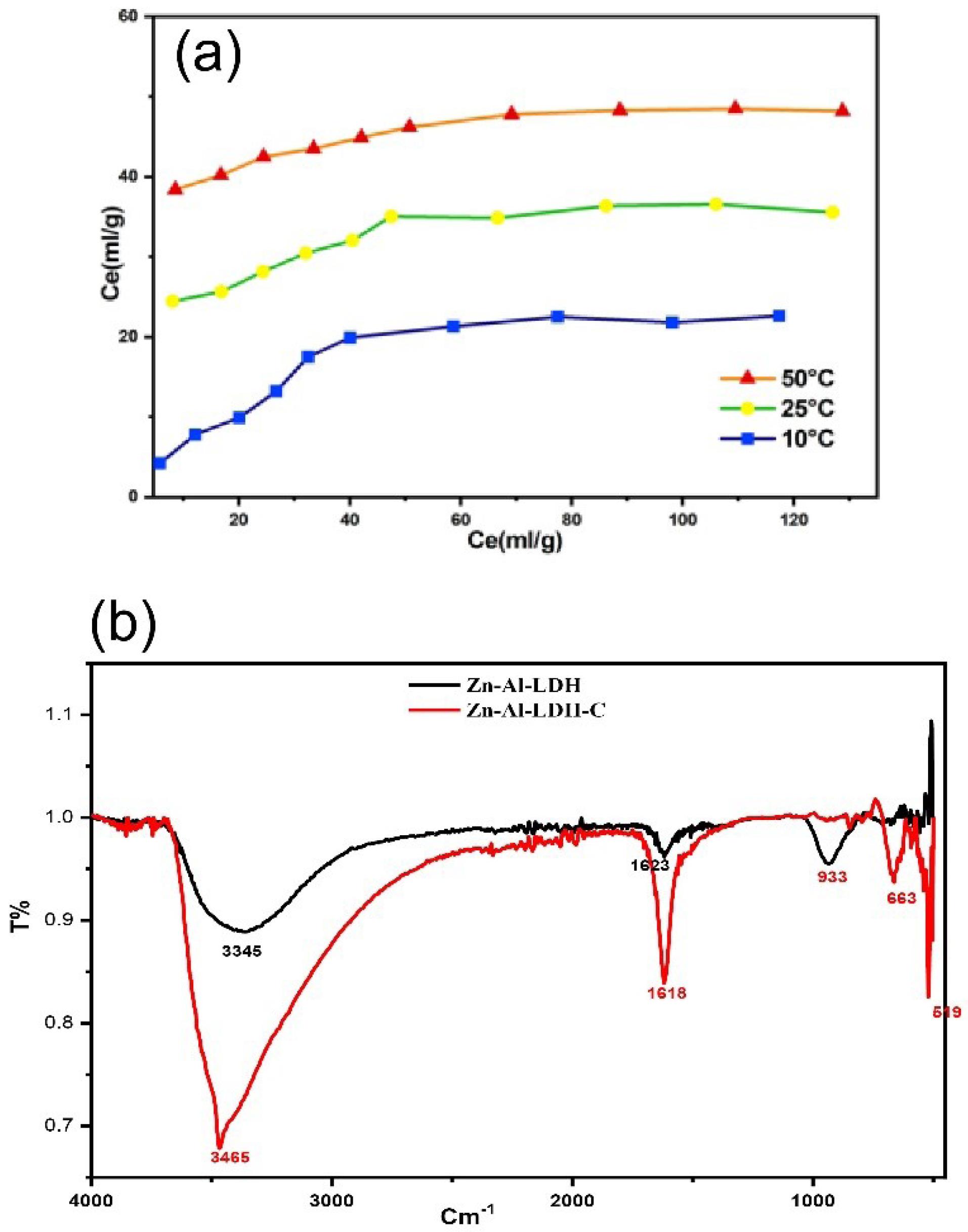

Fig. 5.

(a) Influence of Temperature on Adsorption of Nitrate, (b) FTIR Spectra of Uncalcined Material (Zn-Al-LDH) and Calcinated Material (Zn-Al-LDH-C)

Fig. 5.

(a) Influence of Temperature on Adsorption of Nitrate, (b) FTIR Spectra of Uncalcined Material (Zn-Al-LDH) and Calcinated Material (Zn-Al-LDH-C)

This behavior is consistent with the surrounding environmental conditions, as significant nitrate leaching generally takes place during colder, wetter, and non-growing periods, especially from late autumn to early spring. The enhanced nitrate adsorption at lower temperatures highlights the significant advantage of using LDH materials for the removal of nitrate, making it an effective solution under such conditions. The results showed that the adsorption of nitrate anions (NO₃⁻) on the surface of Zn/Al-LDH decreased with rising temperature, similar to findings from a study where Zn-Al-LDH was synthesized using the co-precipitation method at a Zn/Al molar ratio of 3:1 (42). However, Mohammadi et al reported that an increase in temperature leads to a decrease in nitrate adsorption on activated carbon (44). Similarly, the adsorption efficiency of Zn–Mg–Al/LDH has been observed to decrease as the temperature rises (45).

3.3.4.2. Effect of Calcination (FTIR Characterization)

As illustrated in Fig. 5b, the FTIR analysis of Zn-Al-LDH before and after calcination (Zn-Al-LDH and Zn-Al-LDH-C) reveals that the calcination process significantly affects the adsorption characteristics of Zn-Al-LDH. A significant reduction in the intensity of all adsorption peaks is observed following calcination. Notably, the band corresponding to interlayer water molecules (ν_H2O) at approximately 1618 cm⁻¹ exhibits a decrease in intensity, indicating their removal. Furthermore, the vibration band associated with carbonate anions (ν₃(CO₃)) becomes broader and exhibits a lower intensity compared to the uncalcined LDH phase, reflecting the expulsion of carbonate ions, typically in the form of CO₂, during the dehydration of the Zn-Al-LDH structure. Upon rehydration, the interlamellar space accommodates reintroduced water molecules and carbonate anions (CO₃²⁻), leading to the reconstruction of a new LDH phase. This demonstrates the reversible nature of the structural changes and the ability of the material to restore its intercalated components.

Table 2 compares LDH-based materials for nitrate removal from water, focusing on synthesis conditions, pH, dose, efficiency, and cost. Calcined materials such as Zn-Al-LDH-C and Mg-Al-LDH-C (400-500 °C) showed enhanced stability, while non-calcined ones (Zn-Al-LDH@BBAC, Mg-Al-LDH@Biochar) may have altered surface properties.

Nitrate removal was most effective at pH 6-7, with Zn-Al-LDH-C achieving the highest efficiency (94%) at a low dose, whereas Mg-Al-LDH@Biochar had the lowest (70%) despite a longer reaction time. Most LDH-based materials were low-cost, except for biochar composites, which had moderate costs. Zn-Al-LDH-C proved the most efficient and cost-effective option.

3.3.5. Adsorption Isotherm

The adsorption isotherms were obtained using the optimum suspensions of each material studied in 20 mL of nitrate at an initial concentration ranging from 25 to 500 mg/L and at the pH of the solution. The suspensions were stirred for the optimal duration at room temperature, centrifuged, and diluted. Then, the supernatants were analyzed. The adsorption equations of Langmuir and Freundlich were used to investigate the capacity of Zn-Al-LDH in terms of the adsorption of nitrate. The Langmuir model is one of the most important models of one-layer adsorption models, which is based on a constant number of adsorption places, and every place has the ability to receive one molecule of adsorbent. The conditions remained consistent across all locations, and no interactions occurred between the molecules of the adsorbent. Another model for isotherm adsorption is the Freundlich model. These two models are presented as follows (50).

Where q_e represents the quantity of adsorbate (in mg), C_e denotes the equilibrium concentration of the adsorbate in the solution (in mg), Q_max indicates the maximum adsorption capacity (in mg/g), and b, k, and n are constants. The surface adsorption of nitrate onto Zn-Al-LDH increased with rising external nitrate concentration.

After applying the adsorption models, the constants for each model were computed, and the plots of these data are given in Fig. 6a (Freundlich model) and Fig. 6b (Langmuir model) indicate that the Langmuir equation provides a superior fit for the adsorption isotherms of nitrate onto the Zn-Al-LDH samples, as evidenced by a higher correlation coefficient (R² = 0.994) compared to the Freundlich isotherm model (R² = 0.909). These results suggest homogeneous surface characteristics and support the notion of a monolayer formation of nitrate molecules on the adsorbent surfaces. In summary, the R² correlation coefficients for Langmuir isotherms were found to be greater than those derived from Freundlich isotherms, suggesting that adsorption of nitrate onto Zn-Al-LDH occurs through a monolayer adsorption mechanism.

Close

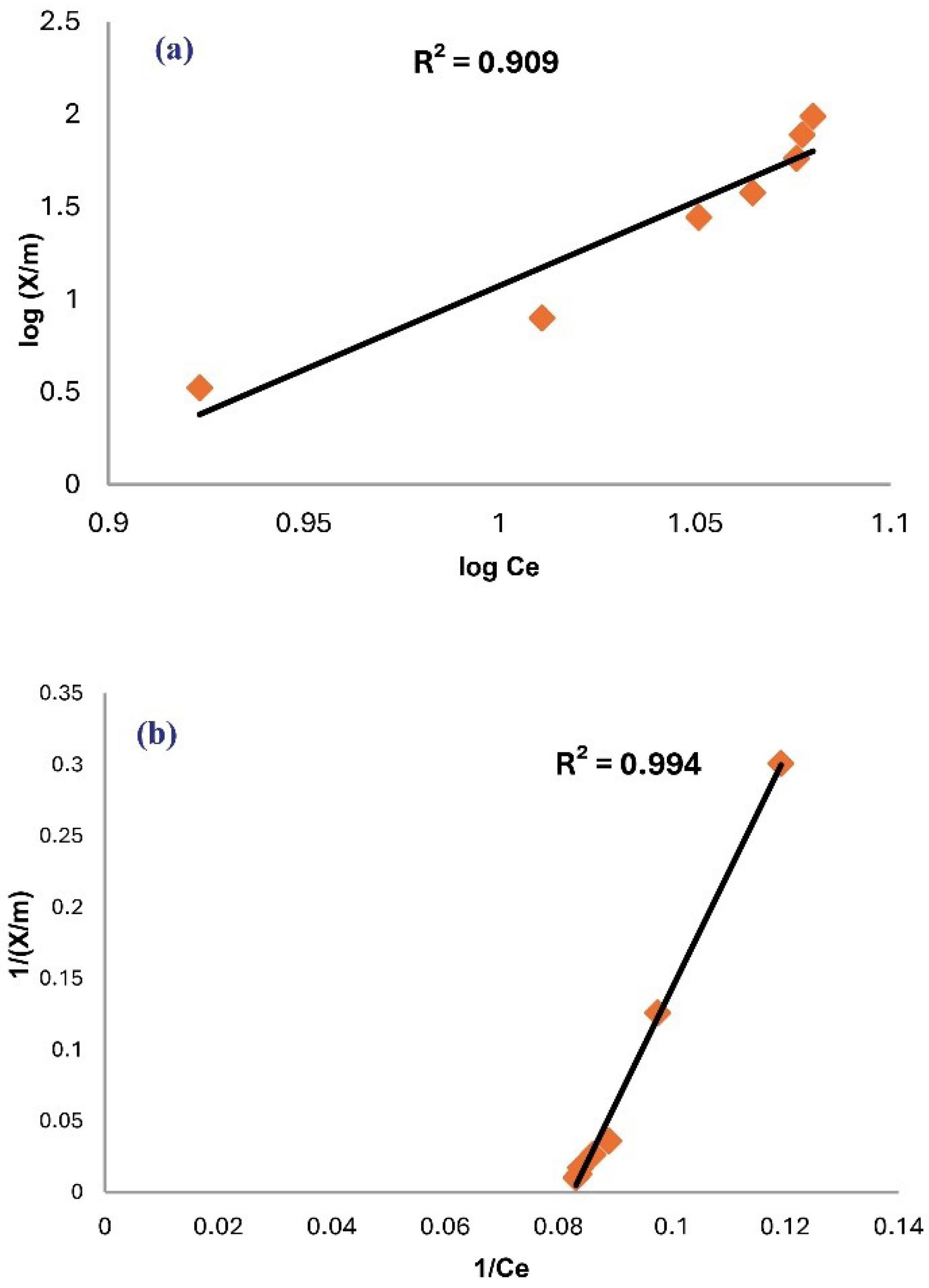

Fig. 6.

(a) Freundlich Isotherm and (b) Langmuir Isotherm Models

Fig. 6.

(a) Freundlich Isotherm and (b) Langmuir Isotherm Models

The infrared spectrum presented in Fig. 7a shows all the characteristic bands of the Zn-Al-LDH phases after the adsorption of the nitrate ions, as clearly demonstrated by the net decrease in the carbonate ion band. It has been reported that the characteristic peak of NO₃^- exists at approximately 1365 cm^-1. Fig. 7b illustrates the isotherm associated with the adsorption of nitrate onto Zn-Al-LDH.

Close

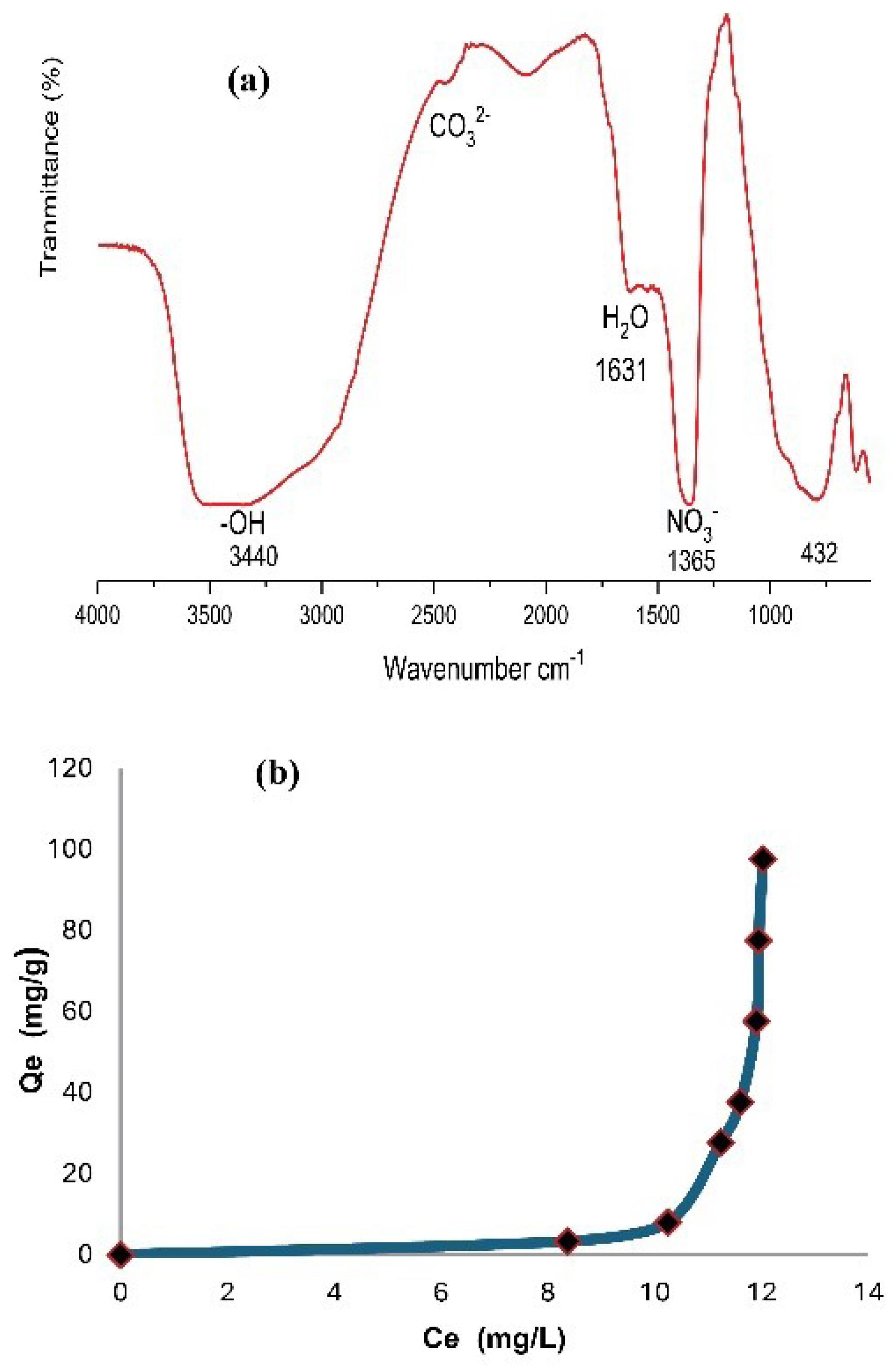

Fig. 7.

(a) FTIR Spectra of Zn-Al-LDH after Nitrate Adsorption, (b) Isotherm of Nitrate Adsorption on LDH

Fig. 7.

(a) FTIR Spectra of Zn-Al-LDH after Nitrate Adsorption, (b) Isotherm of Nitrate Adsorption on LDH

3.3.6. Adsorption Mechanism

The distinctive properties of Zn-Al-LDHs, including their layered structures, high surface areas, and high ion-exchange capacities, make them highly favored as nanomaterials for the adsorption process. The adsorption processes facilitated by LDHs can occur through various mechanisms, such as surface adsorption, ion exchange, intercalation, and memory reconstruction. When polycationic ions are adsorbed by LDHs, numerous pathways emerge, complicating the task of fully elucidating the different modes or mechanisms through which anions are incorporated. The operational conditions established for the effective removal of nitrate ions included a short contact time, low concentration, and reduced adsorption temperature. The adsorption of NO₃^- onto the (ZnAl-CO₃) Zn-Al-LDH is facilitated by p-complexation. This interaction occurs between the zinc ions, which possess available positive charges, and the partially negatively charged oxygen atoms of the NO₃^- ions. Bonding can occur either through direct sigma bonds or via the back donation of electron density from zinc to the nonbonding orbitals of oxygen atoms. The proposed mechanism is consistent with the FTIR analysis of Zn-Al-LDH following the adsorption process. This analysis revealed a significant electrostatic interaction between the layered Zn-Al-LDH and adsorbed nitrate anions. Furthermore, the structural integrity of the Zn-Al-LDH was maintained, as evidenced by the absence of any noticeable changes after nitrate adsorption, indicating both the sustainability and stability of the material. The carbonate group is the most prevalent and stable interlayer anion, accompanied by the consistent presence of certain interlayer water molecules.

The nitrate removal mechanism of Zn-Al-LDH-C includes ion exchange, electrostatic attraction, and intercalation. Calcination enhances adsorption by increasing surface area and creating structural vacancies. Positively charged hydroxyl groups attract nitrate ions, which intercalate into the LDH layers. FTIR analysis confirms nitrate incorporation, and Langmuir isotherm fitting indicates a uniform monolayer adsorption process.

4. Conclusion

This study primarily focused on the synthesis, characterization, and application of Zn-Al-LDH nanostructure derived from a LDH matrix for the removal of nitrate from aqueous environments. The synthesized adsorbent was characterized using XRD, TGA/DTA, SEM, and FTIR to confirm the successful formation of the LDH nanostructure. Before conducting the elimination experiments, we confirmed that the synthesized materials were indeed the desired double-lamellar hydroxides. During the nitrate removal experiments, several parameters influencing the nitrate-removal capacity were examined, including the adsorption kinetics, isotherms, and the effect of solution pH. The elevated R² value suggested that the data aligned more closely with the Langmuir adsorption model than with the Freundlich model. Zn-Al-CO₃-LDHs exhibited significant adsorption capacity for the removal of nitrate from water. The adsorption process showed high nitrate removal efficiency, and the impact of temperature on the adsorption process was found to be significant. Zn-Al-LDH, derived from the original LDH, shows promising potential as an adsorbent catalyst for water treatment. These findings are of practical relevance for optimizing remediation technologies for aquatic environments.

Competing Interests

None declared.

Ethical Approval

Not applicable.

Funding

This study was self-funded by the authors and received no external financial support from any funding organization.
